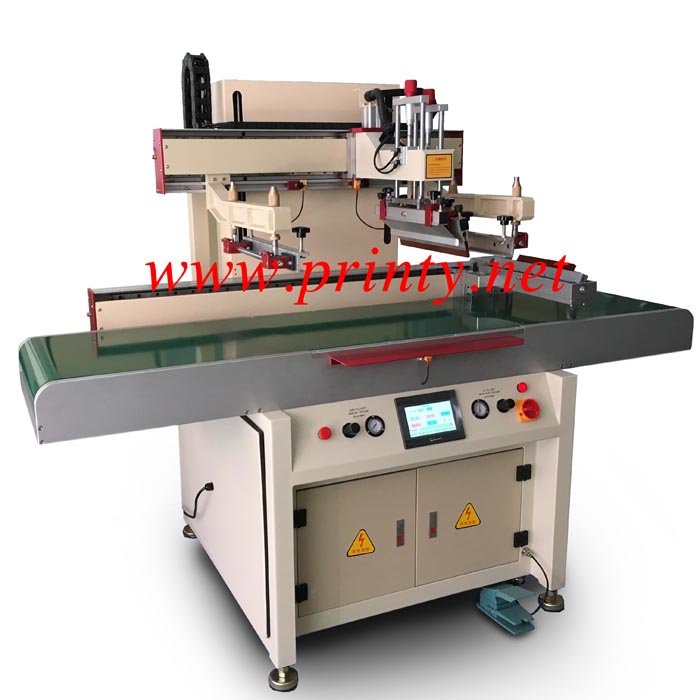

Automatic conveyor screen printing machine with screen cleaning system,screen printer with auto conveyor and screen bottom cleaning fuction
Automatic conveyor screen printing machine with screen cleaning system,screen printer with auto conveyor and screen bottom cleaning fuction
  • Professionally Manufacture Wholesale Automatic conveyor screen printing machine with screen cleaning system,screen printer with auto conveyor and screen bottom cleaning fuction.
  • Vertical lifting structure, screen frame up and down as well as the print head moving right and left driven by variable motors.
  • Programmable PLC + touch screen control system, screen printing and screen frame movement using independent driving power.
  • Pneumatic control screen printing squeegee, photoelectric eye control stroke, independent adjustment.
  • Machine can be operated by Manual / Semi-automatic / Automatic three modes, the printing time is set through digital control.
  • As different product may need different ink thickness you can set 1~3 printing times.
  • Independent print head lifting device leads to easy and convenient for setting the squeegee knife / ink scraper and screens etc.
  • Right and left double guide column screen arm clips, easy and convenient to adjust and install the screens
  • Uses Japan SMC brand pneumatic components control.
  Main Specifications:
  1. Max. screen printing area 450x650mm
  2. Size of screen printing table 500x700mm
  3. Max. frame size 600x880mm
  4. Thickness of printing matter 0-90mm
  5. Max. silk screen printing speed 12 pcs/min
  6. Power supply 220v 500W
  7. Air pressure 0.5-0.65 Mpa/cm2
  8. Net weight 480kg
  9. Gross weight 650kg
