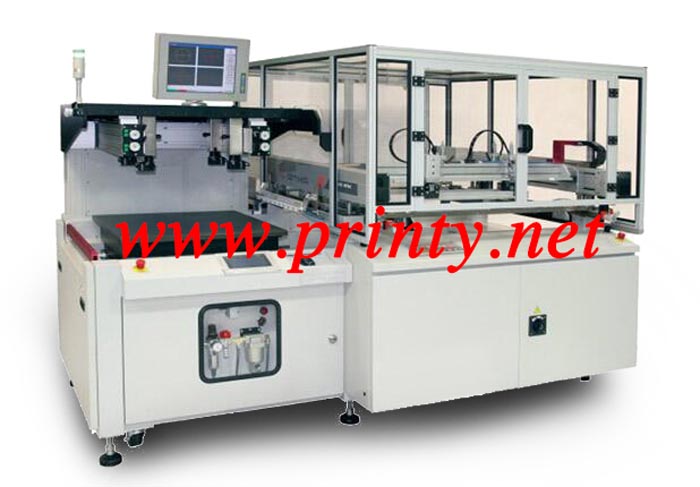

| CCD automatic register screen printing machine,auto registering screen printer,professional manufacturer of CCD automatic register screen printing machines equipment |
| PM-S4555CCD / S6060CCD |
| |
| |
Features: |
| |
- Professionally Manufacture Wholesale CCD automatic register screen printing machine,auto registering screen printer. We are professional manufacturers of CCD automatic register screen printing machines equipment.
- Suitable for high-precision CCD automatic register screen printing, such as: cold light board / light guide board / diffuser / touch panel / flexible circuit board / circuit board BGA / Filp Chip and mobile window glass / notebook computer Screen glass etc.
- High precision screen printer with left and right shuttling vacuum screen print table and CCD visual automatic alignment system, accurate positioning, superior performance, significantly improves the printing output.
- Strong and light sophisticated advanced structure, with the top drive (6 sets servo, one set of AC) and precise positioning system makes machine running fast, quiet, smooth and accurate positioning.
- With fast installation and digital operation function,the parameter can be set up to 100 group production conditions memory, this significantly reduces the installation time, improve production capacity.
- Equips with High-level PLC + industrial computer control system, color operation interface + color LCD display, provides convenience and a variety of functional parameters setting on site operation / monitoring.
- With automatic debugging system, safe return, security grating, emergency stop button, warning lights, etc.
|
| |
Main Specifications: |
| |
Models |
PM-S4050CCD |
PM-S6060CCD |
Register accuracy (mm) |
±0.01 |
±0.01 |
Registration time (Second) |
<1 |
<1 |
CCD focus scale (mm) |
10.5x8.4 |
10.5x8.4 |
CCD registering scale (mm) |
X:±125-305
Y:-45±305 |
X:±125-405
Y:-45±405 |
Machine weight (kg) |
1450 |
1580 |
Machine dimension (mm) |
2470x1380x1650 |
2570x1580x1650 |
Power consumption (kw) |
5 |
5 |
Air source (kg/c㎡ PSI) |
5-6 |
5-6 |
Max printing speed |
500 |
450 |
Power supply |
3∮,220V/380V,50/60Hz |
3∮,220V/380V,50/60Hz |
Max screen frame size (mm) |
900x1000 |
1100x1100 |
Print table size (mm) |
600x700 |
800x800 |
Max printing size (mm) |
400x500 |
600x600 |
|
| |
|
|
|
|
