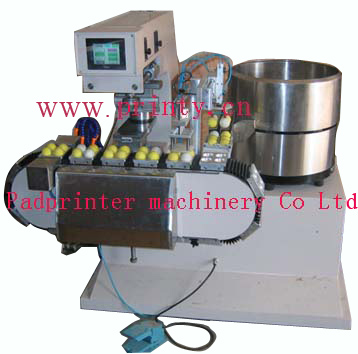

Golf ball pad printers,Fully automatic golf ball pad printing machine,Automatic vertical conveyor ink cup pad printing machine equipment

PM-A1030C

Features:

Professionally Manufacture Wholesale and supply Golf ball pad printers,Fully automatic golf ball pad printing machine,Automatic vertical conveyor ink cup pad printing machine equipment.
Advanced computerized system control
Single chip microprocessor technology is being used
Pneumatically driven
Infrared photo sensor and hydraulic absorber are adopted
Built-in LED digital counter
Emergency stop system to ensure the safety of operator
Light-weight, strong aluminum cast machine frame
Ink trays, work table and pads are independently adjustable for easy color registration
Speed, pad and printing stroke are easily adjustable for different printing requirements
Ink tray, doctor blade, nylon ink pusher and pads are easily installed and dismounted for quick cleaning

Main Specifications:

Pad printing plates size(mm)	120x300mm
Ink cup size(mm)	Ø110
Max printing length(mm)	100
Max pad head downward travel(mm)	75
Max pad head forward travel(mm)	200
Work table X-axis travel(mm)	0
Work table Y-axis travel(mm)	50
Work table Z-axis travel(mm)	150
Work table offset angle(°)	0
Pad adjustment X-axis(mm)	45
Pad adjustment Y-axis(mm)	40
Shuttle stroke(mm)	127
Conveyor pitch of index(mm)	127
No of jig fixture(pc)	16
Distance between work pieces(mm)	77
Max workpiece height(mm)	130
Pad printing pressure(MPa)	11.8
Max pad head forward pressure(MPa)	4.8
Shuttle pressure(MPa)	0.45-0.60
Conveyor pressure (MPa)	0.45-0.60
Max speed(pcs/min)	75
Air pressure(MPa/cm²)	0.45-0.60
Air consumption(L/min)	50
Power supply	110/220V 50/60Hz
Power consumption(W)	250
Machine dimension(mm)	1050X1360X1480
Packing dimension(mm)	1280X1680X1530
Net weight(kg)	500
Gross weight(kg)	580
