Fiber Laser Marking Machine

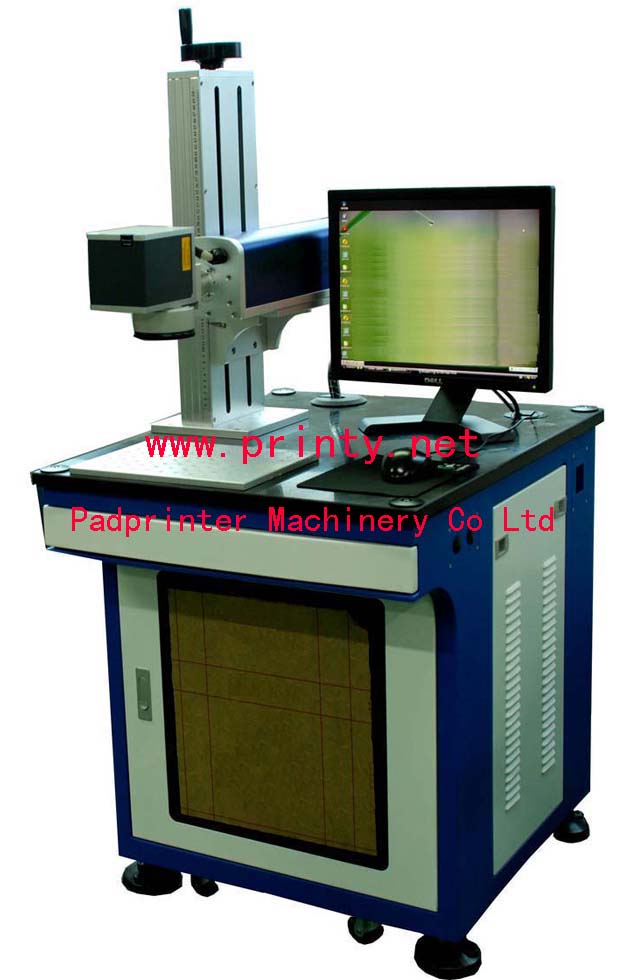

Fiber Laser Marking Machine

PM-FB20B

  Features:


With e excellent light quality - Comparing with traditional solid laser marking machine, its focused from ground mode output is less than 20um, angle of divergence is only 1/4 of it in semi-conductor pump laser device. It is especially suitable for precision marking.

Low usage cost - photoelectric conversion efficiency maximizes up to 30%, whole machine power consumption is only 600w, it is 1/10 of lamp pump solid laser marking machine. It greatly saves the cost in power consumption.

Free maintenance and long service life - Using laser diode as the source of pump, all sealing light path design, it is about no-failure operation with over than 100 thousand working hours.

Fast process speed - its processing speed is 5-10 times faster than traditional laser marking machine.



Field of application

it is mainly uses on high quality and large quantity marking fields such as electronic components, automobile instrument buttons, mobile phone buttons, mobile phone covers, transparent button of audio devices, one dimension and two dimensions laser bar code and silicon chip etc.

  Main Specifications:

Laser power 20W
Repeat frequency 20~100KHz
Max marking size 100×100(70~250)mm
Burning depth ≤0.5mm
Line marking speed ≤12000mm/s
Minimum line width 0.01mm
Minimum height of character 0.15mm
Repeat error 0.002mm
Power supply 220V±10%/50Hz/5A
Machine total power consumption 600W
Machine dimension 1100mm×620mm×1200mm
