Pad printer,Pad printing machine,Pad print machinery equipment,Professionally produce wholesale supply pad printer,1~10 color shuttle conveyor pad printer
|
|

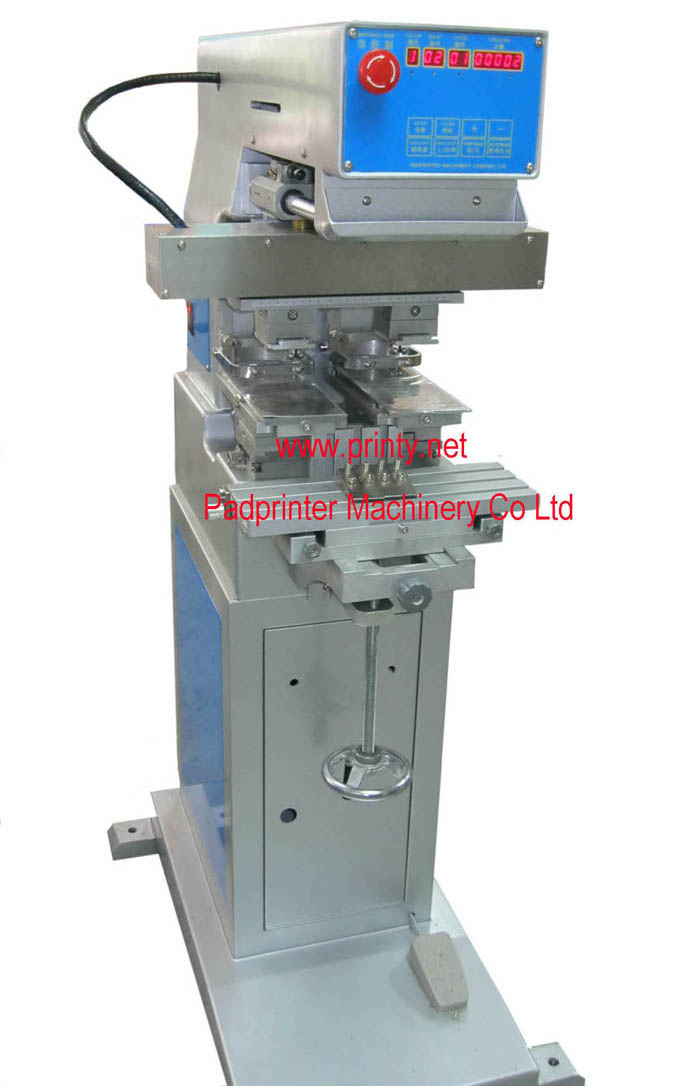

PM-280SCP
|
| |
| |
Features: |
| |
- Professionally produce wholesale supply wide variety pad printer,Pad printing machine,Pad print machinery equipment,1~10 color shuttle conveyor pad printer.
- Professionally produce wholesale supply 2 color pad shuttle printing machine equipment, the pad shuttle printing machine equipments are different to traditional print table shuttling, this pad printer printing machine prints color by pad shuttling.
- Other multi color automatic pad printing machine can be custom made in the same way on request.
- Advanced computerized system control
- Single chip microprocessor technology is being used
- Pneumatically driven
- Infrared photo sensor and hydraulic absorber are adopted
- Built-in LED digital counter
- Emergency stop system to ensure the safety of operator
- Light-weight, strong aluminum cast machine frame
- Ink trays, work table and pads are independently adjustable for easy color registration
- Speed, pad and printing stroke are easily adjustable for different printing requirements
- Ink tray, doctor blade, nylon ink pusher and pads are easily installed and dismounted for quick cleaning.
|
| |
Main Specifications: |
| |
| Max. pad printing plate size(mm) |
100x250 |
| Max pad printing diameter(mm) |
Ø82 |
| Max pad printing length(mm) |
82 |
| Max pad head downward travel(mm) |
50 |
| Max pad head forward travel(mm) |
125 |
| Work table X-axis travel(mm) |
35 |
| Work table Y-axis travel(mm) |
35 |
| Work table Z-axis travel(mm) |
130 |
| Work table offset angle(°) |
18 |
| Pad adjustment X-axis(mm) |
45 |
| Pad adjustment Y-axis(mm) |
40 |
| Shuttle stroke(mm) |
|
| Conveyor pitch of index(mm) |
|
| No of jig fixture(pc) |
1 |
| Distance between work pieces(mm) |
|
| Max workpiece height(mm) |
130 |
| Pad printing pressure(MPa) |
11.8 |
| Max pad head forward pressure(MPa) |
4.8 |
| Shuttle pressure(MPa) |
|
| Conveyor pressure (MPa) |
|
| Max speed(pcs/min) |
20 |
| Air pressure(MPa/cm2) |
0.45-0.60 |
| Air consumption(L/min) |
8 |
| Power supply |
110/220V 50/60Hz |
| Power consumption(W) |
10 |
| Machine dimension(mm) |
780X400X1310 |
| Packing dimension(mm) |
960X580X1550 |
| Net weight(kg) |
120 |
| Gross weight(kg) |
158 |
|
| |
|
|
