Professionally manufacture high quality pad printers,Advanced pad printers,Programmable pad printers,Shuttle pad printers,conveyor pad printing machine equipments
Professionally manufacture high quality pad printers,Advanced pad printers,Programmable pad printers,Shuttle pad printers,conveyor pad printing machine equipments

Professionally manufacture high quality pad printers,Advanced pad printers,Programmable pad printers,Shuttle pad printers,conveyor pad printing machine equipments

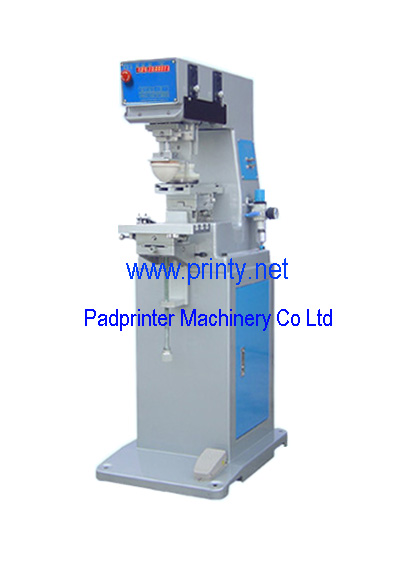

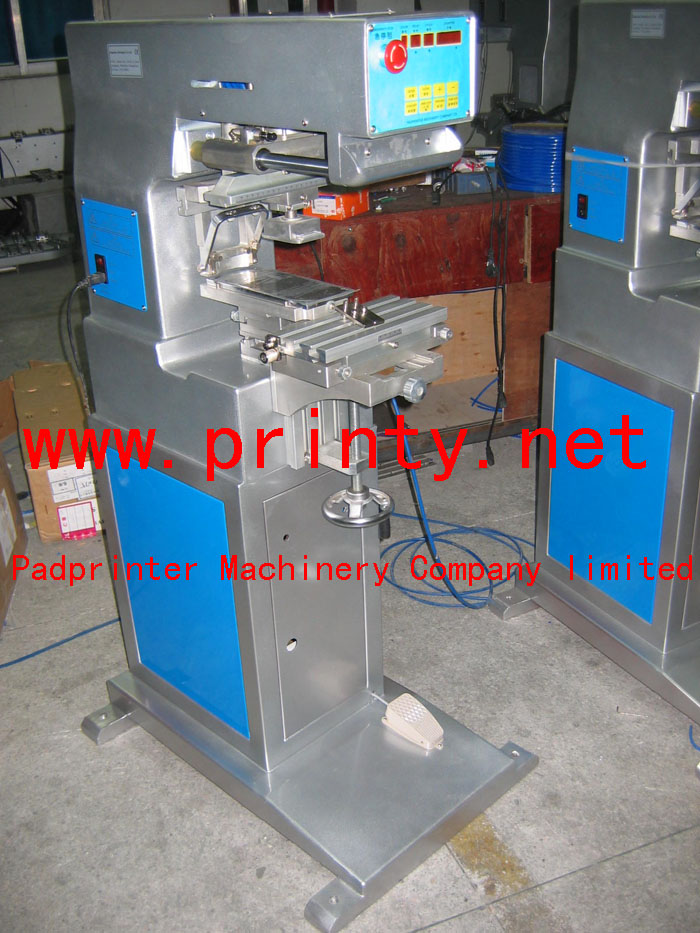

  1. Professionally Manufacture Wholesale and supply high quality pad printers, Advanced pad printers, Programmable pad printers, Shuttle pad printers, conveyor pad printing machine equipments.
  2. The pad printers and pad printing machine equipments are mainly used to print color on promotional products such as pens, travel mugs, balls, calculators, golf balls, bottle caps, glasses, mobile phone,key tags, mouse, and other electronic devices, medical products and automotive parts etc.
  3. Our Pad printers and pad printing machine equipments all introduces advanced and programmable computerized control system,Single chip microprocessor technology is being used.
  4. Pneumatically driven
  5. Infrared photo sensor and hydraulic absorber are adopted
  6. Built-in LED digital counter Emergency stop system to ensure the safety of operator
  7. Light-weight, strong aluminum cast machine frame
  8. Ink cup, work table and pad are independently adjustable for easy color registration
  9. Speed, pad and printing stroke are easily adjustable for different printing requirements
  10. Pad printers ink cup, pad printing plate and pad are easily installed and dismounted for quick cleaning.
  Main Specifications:
Max. pad printing plate size(mm) 100x250
Max pad printing printing diameter(mm) Ø82
Max pad printing length(mm) 82
Max pad head downward travel(mm) 50
Max pad head forward travel(mm) 125
Work table X-axis travel(mm) 35
Pad printers work table Y-axis travel(mm) 35
Pad printers work table Z-axis travel(mm) 130
Pad printers work table offset angle(°) 18
Pad adjustment X-axis(mm) 45
Pad adjustment Y-axis(mm) 40
Shuttle stroke(mm)
Conveyor pitch of index(mm)
No of jig fixture(pc) 1
Distance between work pieces(mm)
Max work piece height(mm) 130
Pad printing pressure(MPa) 11.8
Max pad head forward pressure(MPa) 4.8
Shuttle pressure(MPa)
Conveyor pressure (MPa)
Max pad printing speed(pcs/min) 20
Air pressure(MPa/cm2) 0.45-0.60
Air consumption(L/min) 8
Power supply 110/220V 50/60Hz
Power consumption(W) 10
Machine dimension(mm) 780X400X1310
Packing dimension(mm) 960X580X1550
Net weight(kg) 120
Gross weight(kg) 158
