Mini UV Curing Machine,Portable Tabletop UV Drying Machine Equipment,Small UV Dryer,Online UV Cure Drying System,Desktop UV Machines Equipments
Mini UV Curing Machine,Tabletop UV Curing Equipment,Portable UV Curing Machine Equipment,Small UV Dryer,Online UV Curing Drying System

Mini UV Curing Machine,Portable Tabletop UV Drying Machine Equipment,Small UV Dryer,Online UV Cure Drying System,Desktop UV Machines Equipments

Models: PM-200TUV / 300TUV / 400TUV

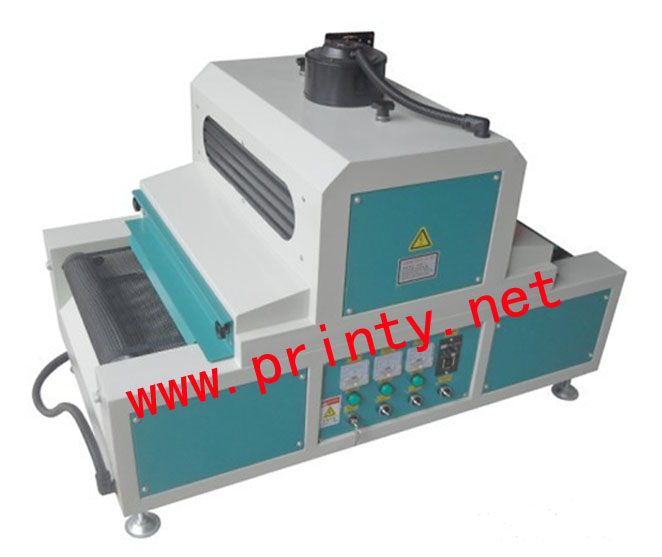

  • This is tabletop and portable mini conveyor UV curing machine equipment, it is widely used to cure the uv coating and printing for mobile phone shell, CD, membrane switch, electronic plastic shell surface,IMD injection products etc; it is slao can be used for curing electronic Components, LCD films, plastic sealed terminals, mobile phone component bonding, plastic bonding, and LCD components and so on.
  • The uv light reflector heigh is flexible and adjustable.
  • The UV curing conveyor speed is stepless adjustable from 0~12M/m.
  • It is featured with small, light weight, well-made, easy to move, stable and low noise.
  • Professionally manufactures and wholesale Mini UV Curing Machine,Portable Tabletop UV Drying Machine Equipment,Small UV Dryer,Online UV Cure Drying System,Desktop UV Machines Equipments etc. Special size uv curing machine can be custom made!
  Main Specifications:
  1. Inlet length: 250mm;
  2. Outlett length: 270 mm;
  3. Conveyor belt width: 200/300/400mm;
  4. Belt Material: Teflon mesh belt;
  5. Feeding height: 540 ± 100mm
  6. Feeding inlet height: 10 ~ 120mm(Adjustable);
  7. UV lamp power: 2KW x 2 sets
  8. UV lamp irradiation height can be adjusted manually;
  9. UV lamp irradiation width: 200/300/400mm;
  10. UV chamber length : 300mm;
  11. Exhausting blower: 80W
  12. Wave peak: 365nm;
  13. UV lamp life: 1,000 hours (guaranteed 800 hours);
  14. Conveying motor: 25W;
  15. Conveyor speed: 0-12m / min, stepless speed transmission;
  16. Power supply: Single phase 220V;
  17. Dimensions: 1020 × 660 × 557mm (L × W × H);
  18. Machine weight approx: 65kg;
  19. Gross Weight: 100kg.
