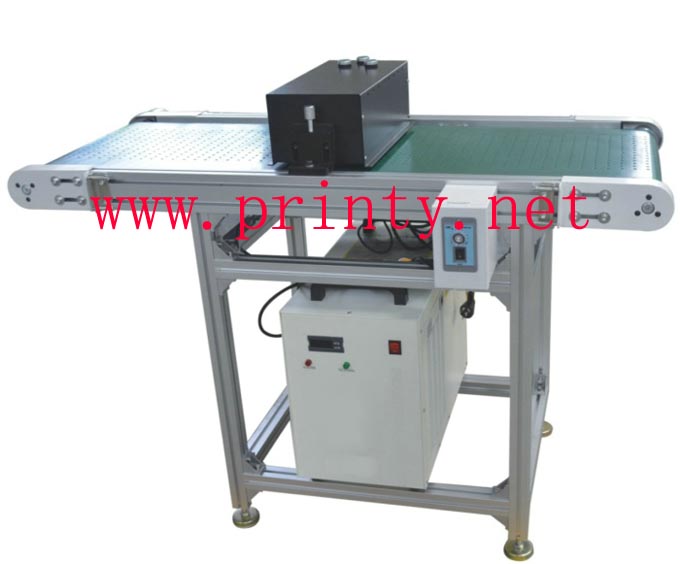

• Compares with the traditional UV curing machine, the working life of the mercury lamp is approx 800-3000 hours, while the working life of the LED UV curing machine can reach 20000-50000 hours. The LED uv machine can be light up when it is needed. The working life of the LED uv machine is 30-60 times that of the traditional UV curing machine, which reduces the cost of replacing the lamp and improves the production efficiency.
• Low energy consumption: The LED uv curing machine,LED uv dryer,LED uv curing equipment,LED drying system,High efficiency uv curing machines equipments is also very energy-saving. After started the traditional uv curing machine always consumes power no matter it functions right or not, and it start-up slowly which causes unnecessary power consumption and shortens the working life of the mercury lamp.
• Little heat radiation: The led uv curing machine system does not emit infrared light. While the traditional ultraviolet curing system generally makes the surface of the irradiated product rise 40-70 °C, this leads to the heat-sensitive substrates such as PVC, PET, plastic, lens, bonding, electronic products, and optical fiber cables etc deformation.
• super strong uv light irradiation: Through the latest optical technology and manufacturing process our Led uv curing machine achieves higher intensity output and uniformity while comparing with the traditional mercury lamp illumination, it is about twice that of traditional mercury lamp illumination, this enables UV curing to be faster and shortens the production time. It greatly increases your production efficiency. it functions as high-precision, high-intensity irradiation; UV light output reached 8600mW/m2 irradiation intensity.
• Simple installation and space saving: The size of the LED uv curing machine is only 1/5 of that of the traditional uv curing machine, this makes the installation of the equipment easy, simple and reduces the production occupation area; After modification, the led uv curing system can be equipped onto the traditional UV curing machine.
• Environmentally friendly, energy saving and ready for immediate use.
• With advanced cooling system to ensure the work piece will not to be affected by high temperature, this also extends the lamps life.
• Different size Led uv curing machines can be custom made.

1. Maximum uv curing width: 250mm

2. Power supply: 110 / 220V, 50/60Hz, 400W.

3. Wavelength: 365~395nm

4. Irradiation height: 2-20mm adjustable

5. Irradiation intensity: 400-2500mw / cm2

6. LED UV lamp life: 25000-50000Hour

7. Cooling system: water or air cooling

8. Irradiates area: 250 * 28mm

9. Conveyor speed: 0~60 m/min adjustable
10. Machine dimension(L*W*H): (1500)*(480)*880mm
11. Machine weight: 135kg
