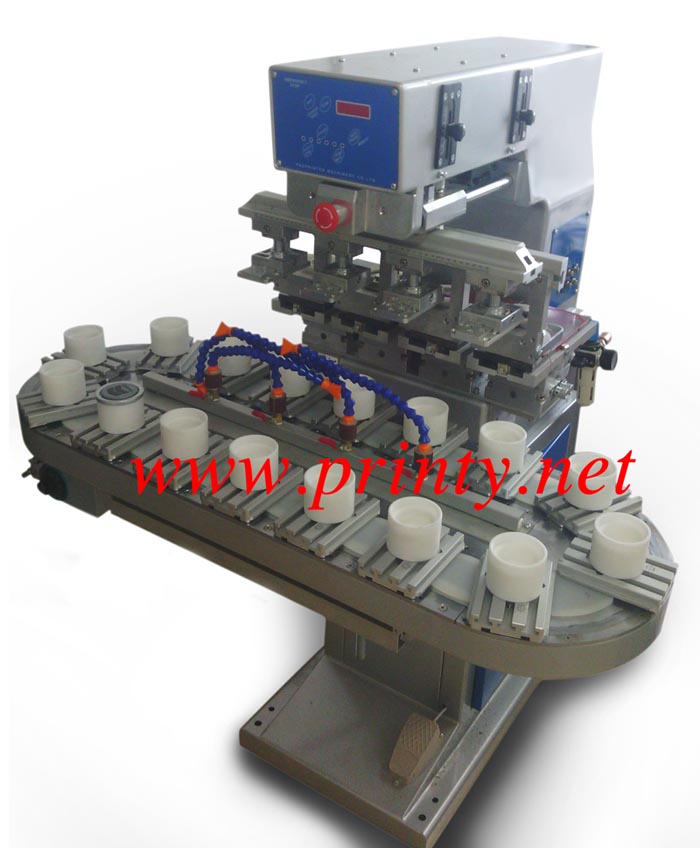

Cap or golf ball ink cup pad printer,semi automatic 4 color conveyor pad printing machine equipment,professional high quality cap or golf-ball pad printer machines

Cap or golf ball ink cup pad printer,semi automatic 4 color conveyor pad printing machine equipment,professional high quality cap or golf-ball pad printer machines

PM-480CC16

  Features:

  1. Professionally manufactures and wholesales cap or golf ball ink cup pad printer,semi automatic 4 color conveyor pad printing machine equipment,high quality cap or golf-ball pad printer machines.
  2. It is suitable for pad printing on regular or irregular surface of promotional items such as caps,golf balls,pens,baby feeding bottles,usb,cups, trophy,toys,keyboards,calculators,key rings,CD/DVD,telephones,covers,headphones, masks,memory cards,switches,hardware accessories, syringes, cards,toothbrushes etc.
  3. It can be set to print one color to four color through the front control panel.
  4. Advanced computerized system control
  5. Single chip microprocessor technology is being used
  6. Infrared photo sensor and hydraulic absorber are adopted
  7. Built-in LED digital counter
  8. Emergency stop system to ensure the safety of operator
  9. Light-weight, strong aluminum cast machine frame
  10. Ink trays, work table and pads are independently adjustable for easy color registration
  11. Speed, pad and printing stroke are easily adjustable for different printing requirements
  12. Ink tray, doctor blade, nylon ink pusher and pads are easily installed and dismounted for quick cleaning.
  Main Specifications:

Pad printing plates size(mm) 100x250
Ink cup diameter(mm) Ø90
Max printing length(mm) 80
Max pad head downward travel(mm) 50
Max pad head forward travel(mm) 200
Work table X-axis travel(mm) 40
Work table Y-axis travel(mm) 65
Work table Z-axis travel(mm) 280
Work table offset angle(°)
Pad adjustment X-axis(mm) 45
Pad adjustment Y-axis(mm) 65
Shuttle stroke(mm)
Conveyor pitch of index(mm) 125
No of jig fixture(pc) 16
Distance between work pieces(mm) 125
Max work piece height(mm) 280
Pad printing pressure(MPa) 30.1
Max pad head forward pressure(MPa) 7.5
Shuttle pressure(MPa)
Conveyor pressure (MPa) 7.5
Max speed(pcs/min) 20
Air pressure(MPa/cm2) 0.45-0.60
Air consumption(L/min) 15
Power supply 110/220V 50/60Hz
Power consumption(W) 620
Machine dimension(mm) 1180x1080x1480
Packing dimension(mm) 1380x1280x1700
Net weight(kg) 310
Gross weight(kg) 380
