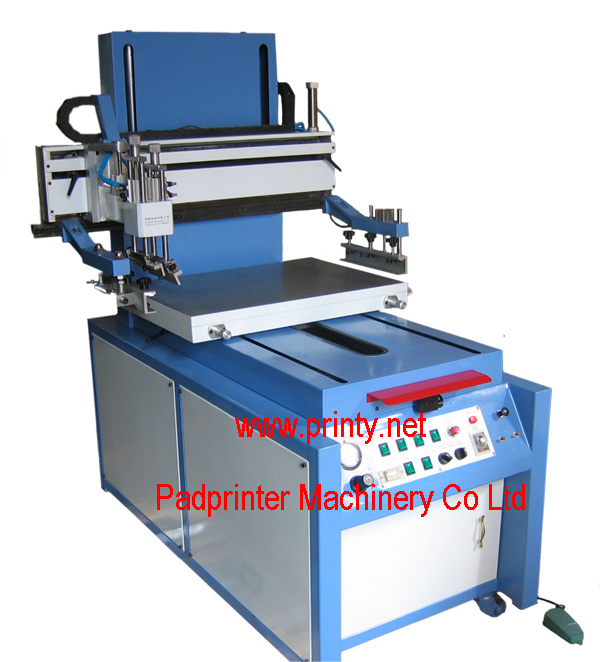

Shuttle Screen Printer,Semi Automatic Flat Vacuum Shuttle Screen Printing Machine,Pneumatic Screen Printing Equipment With Sliding Vacuum Table
|
| PM-S4060FS |
| |
| |
Features: |
| |
- Professionally Manufacture Wholesale Shuttle Screen Printer,Semi Automatic Flat Vacuum Shuttle Screen Printing Machine,Pneumatic Screen Printing Equipment With Sliding Vacuum Print Table.
- The Shuttle Screen Printer,Semi Automatic Flat Vacuum Shuttle Screen Printing Machine,Pneumatic Screen Printing Equipment With Sliding Vacuum Table is suitable for printing on any flat surfaces of various materials such as circuit board, glass plate, metal nameplate, PVC boards, or paper.
- Pneumatically driven which effectively reduces noise in operation.
- Stainless printing table can be adjusted in 3 directions to ensure finest registration.
- The printing table also has vacuum function to secure fixing of substrate throughout entire cycle or intermittently.
- Constructed with sliding print table for the convenience of placing printing sheets.
- The squeegee and flood bar can be stopped before or after printing to suit different ink natures and different printing effects.
- Brand-name pneumatic parts are used. Precise shafts and bearings are placed in active parts of the machine to ensure smooth and stable runs.
- Automatic hydraulic equipment is installed to peel the screen off printed surface, which effectively avoids smear defect.
- Squeegee/flood bar depth, pressure, speed, leveling and stroke, etc. are all adjustable to achieve various printing effects.
|
| |
Main Specifications: |
| |
| Max. printing area |
350x550mm |
| Size of printing table |
400x600mm |
| Max. frame size |
480x680mm |
| Thickness of printing matter |
0-90mm |
| Max. printing speed |
16 pcs/min |
| Power |
220v 400W |
| Air pressure |
0.5-0.65 Mpa/cm2 |
| Air consumption |
10 L/min |
| Air compressor |
3hp |
| Machine dimension |
1080x950x1660mm |
| Packing measurement |
1260x1130x1900mm |
| Net weight |
250kg |
| Gross weight |
320kg |
|
| |
|
|
Video Of Shuttle Screen Printer,Semi Automatic Flat Vacuum Shuttle Screen Printing Machine,Pneumatic Screen Printing Equipment With Sliding Vacuum Table
|
|
