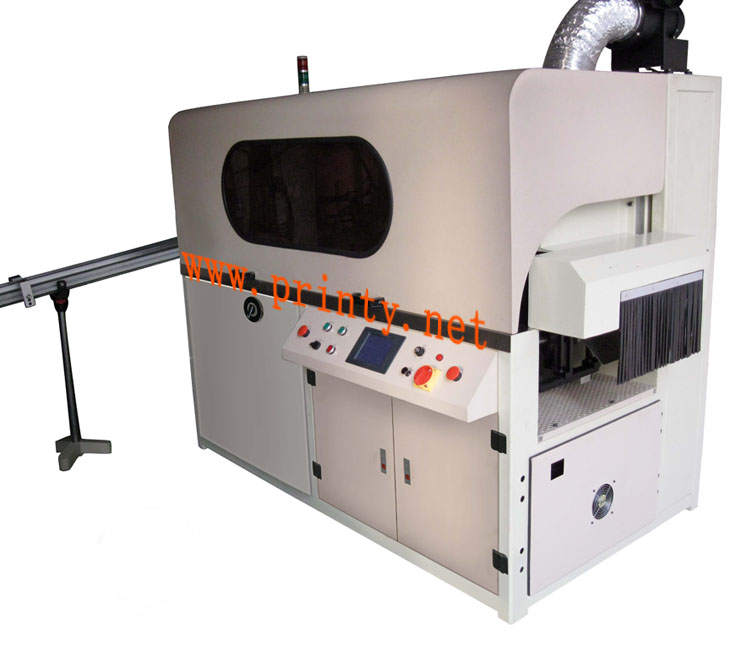

Bottle Screen Printer,Automatic Bottle Screen Printer,Fully Automatic Round Oval Cosmetic shampoo Bottle Screen Printing Machine Equipment
|
| PM-S300A1C |
| |
| |
Features: |
| |
- Manufacture and World Wide Supply Bottle Screen Printer,Automatic Bottle Screen Printer, Fully Automatic Flat Round cylinder Oval Cosmetic Shampoo Bottle Screen Printing Machine Equipment.
- The Bottle Screen Printer,Automatic Bottle Screen Printer,Fully Automatic Round Oval Cosmetic Shampoo Bottle Screen Printing Machine Equipment is designed for printing color on flat round oval cosmetic or shampoo bottles etc. It has the advantage of steady, easy operation, high printing speed, good printing results etc.
- This fully automatic silk screen printing machine can print color one after another as it constructs with color registration accessories.
- Each unit can work as a single color printer, or several units joint together can work as a multi-color screen printer.
- Transmission system is steady in conveying the bottles;
- Conveyor feeding, auto printing, auto ink drying and auto delivering;
- Builds with PLC and touch screen for good operation control;
- No feeding no printing, low feed alarms;
- Flame treatment, UV or hot air drying can be added to the system.
- By changing essential parts fixtures similar products can be auto printed.
- Pneumatically driven which effectively reduces noise in operation.
- Brand-name pneumatic parts are used.
- Squeegee/flood bar depth, pressure, speed, leveling and stroke, etc. are all adjustable.
|
| |
Main Specifications: |
| |
Printing speed |
Round 4000pcs/hr |
Oval 5000pcs/hr |
Printing size |
Round Dia.20~100mm |
Length 25~300mm |
| |
Oval Width 25~120mm |
Length 25~300mm |
| Printing accuracy |
0.04mm |
Compressed air |
0.6MPa |
LPG |
0.15MPa |
| Machine size |
Main/Aux 1908X1000X1500mm |
| |
Loading conveyor 1700X500X700mm |
Power Supply |
380VAC 3 PHASE 50HZ |
UV Machine power |
5KW |
| Motor Power |
1.5KW |
|
| |
|
|
Video of Bottle Screen Printer,Automatic Bottle Screen Printer,Fully Automatic Round Oval Cosmetic shampoo Bottle Screen Printing Machine Equipment
|
|
