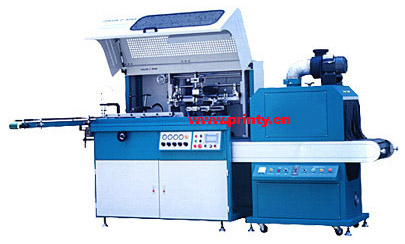

Fully Automatic Bottle Screen Printer,Fully Auto Bottle Screen Printing Machine Manufacturer,Automatic Bottle Screen Printing Equipment With Flame And UV Curing Systems
|
| PM-S120A1C |
| |
| |
Features: |
| |
- Professionally Manufactures Wholesales Fully Automatic Bottle Screen Printer, Fully Auto Bottle Screen Printing Machine, Automatic Bottle Screen Printing Equipment With Flame And UV Curing Systems.
- The Fully Automatic Bottle Screen Printer, Fully Auto Bottle Screen Printing Machine, Automatic Bottle Screen Printing Equipment With Flame And UV Curing Systems is designed for printing color on round and oval bottles. It has the advantage of steady, easy operation, high printing speed, good printing results etc..
- Each unit can work as a single color printer, or several units joint together can work as a multi-color screen printer.
- Transmission system is steady in conveying the bottles;
- Conveyor feeding, auto printing, auto ink drying and auto delivering;
- Builds with PLC and touch screen for good operation control;
- No feeding no printing, low feed alarms;
- Flame treatment, UV or hot air drying can be added to the system.
- By changing essential parts fixtures similar products can be auto printed.
- Pneumatically driven which effectively reduces noise in operation.
- Brand-name pneumatic parts are used.
- Squeegee/flood bar depth, pressure, speed, leveling and stroke, etc. are all adjustable.
|
| |
Main Specifications: |
| |
- Max printing speed: 4000pcs/h
- Bottle diameter: 20~120mm
- Elliptical or flat bottle width: 30~120mm
- Elliptical or flat bottle thickness: 30~100mm
- Elliptical bottle diameter: 60~500mm
- Bottle highness: 50~300mm
- Max Printing area: 250x350mm
- Power Supply: 380V, 3 Phase 4 Wire
- Power Consumption: 7W
- Compressor air supply: 6bar
- LP gas pressure: 1.5bar
- LP gas consumption: 150L/h
- Machine weight: 1300kg
- Machine dimension: 1900x1100x1650mm.
|
| |
|
|
Video of Fully Automatic Bottle Screen Printer,Fully Auto Bottle Screen Printing Machine Manufacturer,Automatic Bottle Screen Printing Equipment With Flame And UV Curing Systems
|
|
