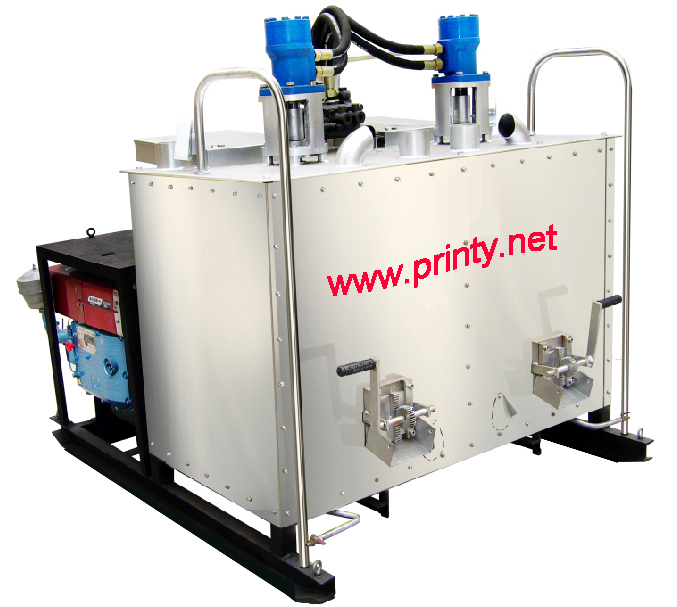

Hydraulic Vehicle-mounted double tanks thermal line making machine

Hydraulic Vehicle-mounted double tanks thermal line making machine

  • It is the main and special lines making machine for for making dash and solid lines, guiding arrows, text etc on the highways, municipal roads, county roads, residential parking area and factories..
  • Powerful hydraulic driving torque ensures the machine works in high performance and large capacity.
  • Uses direct flame burners for high combustion efficiency, saving time and energy.
  • With high melting efficiency, long working time, simple operation and easy maintenance.
  Main Specifications:
  1. Calculating as works eight hours a day, it can draw lines about 800 to 1000 square meters per day.
  2. Engine: 15HP electric start diesel engine with evaporating water cooling system.
  3. Hydraulic system: Multi ways integration hydraulic control valves, positive and negative direction stirring, infinitely speeds variable system.
  4. Hydraulic motor: BM type.
  5. Hydraulic tank capacity: 70 liters
  6. Boiling tank capacity: 360kg x2.
  7. The boiling tank is made of high carbon stainless steel with upright paddle mixer.
  8. Frame structure, there are insulation materials between the internal boiling tank and outside wall.
  9. Heating by imported energy efficient burners through the liquefied petroleum gas.
  10. With overload and overflow protection devices to prevent misuse.
  11. Machine works on high quality, high speed, with flexible operation and easy maintenance.
  12. Line is drawn in regular, tidy, same thickness and its line style is beautiful.
  13. Landing knife: hard alloy with eccentric bushing devices and it can adjust the line thickness from 1 to 3mm.
  14. Line drown width: 100/150/200/250/300/400/450mm. Change to different width hopper according to the line requirements.
  15. Machine dimension: 1800 x 1500 x 1600mm.
  16. Machine weight: 700kg
