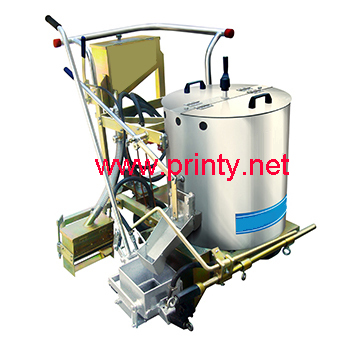

Hand push hot melt line making machine

• For making dash and solid lines, guiding arrows, text etc on the highways, municipal roads, county roads, residential parking area and factories.
• Hand push hot melt line making machine first needs to heat the paint within its boiler, then pours it into the bucket storage for line making.
• Paint gets melt by burning LPG.
• Equips with removable vertical hand mixer device.
• Equips with heat-resistant rubber wheel and aluminum alloy hub.
• a positioner is fixed to the rear wheel so that the machine runs on straight line direction.
• Removable heating drum and right stirring shaft design solves the problem of the mixing drum is always stored with left paint.

1. Machine is light weight, compact and beautiful. Lifting handle is adjustments.
2. Machine works on high quality, high speed, with flexible operation and easy maintenance.
3. Line is made in regular, tidy, same thickness and its line style is beautiful.
4. Adjustable pointer improves work efficiency.
5. Glass beads is spreading automatically.
6. Glass beads spreading speed is with two levels for making adjustments when it is required.
7. Paint drum has two layers of stainless steel for good heat insulation, capacity 100 kg,
8. The paint hopper is made of high precision steel plate; it heats quickly and is good to resist the high temperature, corrosion, distortion etc.
9. Glass beads storage box: 10kg / box
10. Glass beads spreader: synchronous clutch spreading with speed shifting device.
11. Line hopper: Made from high precision ultra-thin material, blade structure, standard width 150mm.
12. Landing knife: hard alloy with eccentric bushing devices and it can adjust the line thickness from 1 to 3mm.
13. Line drown width: 100/150/200/250/300/400/450mm. Change to different width hopper according to the line requirements.
14. Machine size: 1100×980×1000mm.
15. Machine weight: 120kg
